Integrated Insulation and Electric Heating Structure

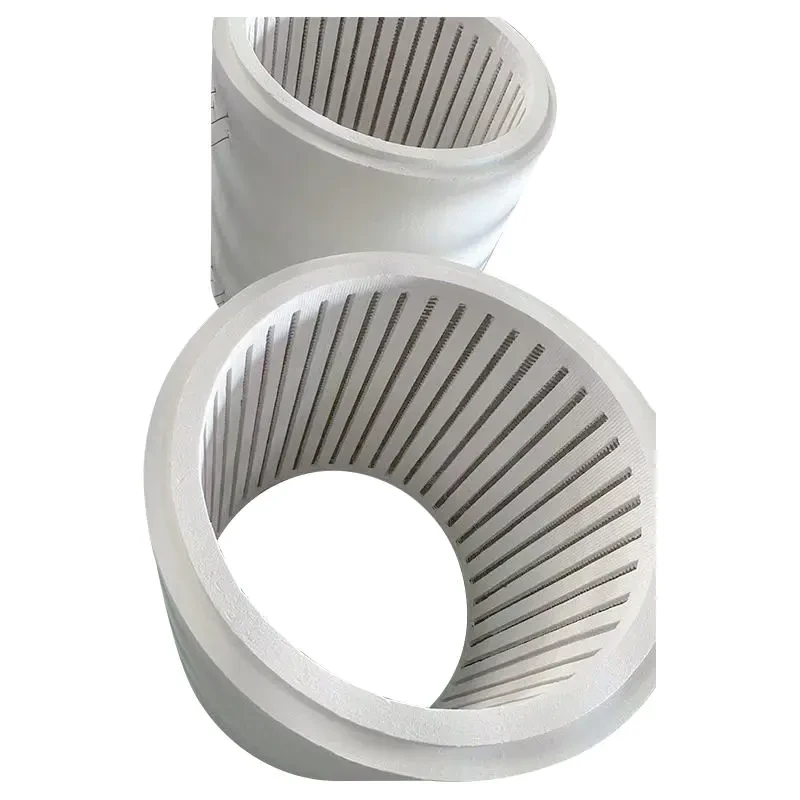

Ceramic Fiber Heating Modules for Resistance Furnaces combine ceramic fiber insulation material with resistance wire in one formed heating component.
Through a special processing method, the resistance wire is positioned directly inside the fiber module or within its working surface. This integrates the insulation structure and electric heating structure into one unit.
Compared with a conventional arrangement where the furnace lining and electric heating elements are installed separately, an integrated module can reduce the number of independent components inside the furnace chamber.
It also allows the shape of the heating surface to be developed according to available equipment space and furnace structure.
The product is suitable for resistance heating equipment operating within a temperature range of 300–1300°C.
Resistance Wire Layout and Forming Options
The resistance wire can be arranged in a Z-shaped pattern or a spiral pattern.
Two forming methods are listed: embedded and buried structures. These options allow the resistance wire arrangement to be matched with different heating surfaces and furnace chamber designs.
The supplied technical information does not provide fixed voltage, power, external dimensions, or resistance-wire material for this product. These details therefore need to be confirmed according to the actual furnace design and project requirements.
For Ceramic Fiber Heating Modules for Resistance Furnaces, buyers should provide or confirm furnace dimensions, target working temperature, electrical configuration, installation method, resistance-wire route, and connection position before production.
This approach is especially relevant for laboratory electric furnaces, small heat treatment furnaces, and non-standard resistance furnaces where a generic module size may not match the equipment.
Custom Module Development within One Production System
Nengcheng Crystal has its own R&D team and production capabilities covering fiber materials, wet vacuum forming, and finished-product machining.
Because this product combines refractory insulation with a heating structure, technical coordination is required before manufacturing.
The technical team can participate in solution design and communication before production. Manufacturing is then organized according to the confirmed technical requirements, while dedicated personnel continue after-sales communication after delivery.
The company's existing production system allows fiber material selection and module structure development to be coordinated in the same workflow.
OEM, Prototype Confirmation and Production Lead Time
OEM and ODM are supported, and customized modules can be developed according to technical drawings or physical prototypes.
A sample can be produced before batch manufacturing. Customized sample development normally takes 7–15 days.
Because Ceramic Fiber Heating Modules for Resistance Furnaces have a relatively high level of customization, the normal production period is 20–45 days, depending on product structure and order quantity.
Photos or videos can be provided during production. Finished modules are normally inspected before packaging, and third-party inspection is accepted.
For customized products, the supplied purchasing information lists a 50% advance payment. The remaining payment arrangement can be confirmed when the order is finalized.
Product Specifications
|
Parameter |
Specification |
|
Product Structure |
Ceramic fiber material integrated with resistance wire |
|
Operating Temperature Range |
300–1300°C |
|
Resistance Wire Arrangement |
Z-shaped or spiral |
|
Forming Method |
Embedded or buried |
|
Specification Method |
Confirmed according to equipment drawing or physical prototype |
